Integration between Microsoft Dynamics 365 CRM & Genesys Cloud is developed by appxconnect and uses Microsoft's Channel Integration Framework (CIF Versions 1.0 & 2.0) and Genesys Cloud's platform APIs.

To begin configuring your integration between Dynamics 365 and Genesys Cloud, you would require the following:

• Microsoft Dynamics 365 instance with administrator privileges and Channel Integration Framework. (Online Version: 9.1 or later).
• Configured setup of your Genesys Cloud account with administrator privileges.


Network Prerequisites

The following are the network prerequisites

• Whitelist appxconnect's Public IP (177.104.46.240, Port:443) at your firewall for unrestricted access to appxconnect for your user's browser (Same as that for Dynamics 365)
• Supported Browser : Google Chrome


Application Setting prerequsites

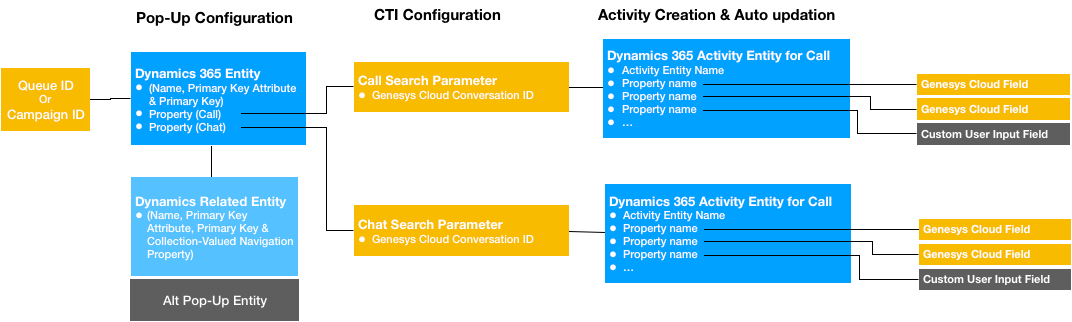

The following parameters of your Genesys Cloud Org are required to complete the integration flow:

• Queue ID & Campaign IDGenesys Cloud List of IDs of Queues and Campaigns ( Queue ID, Campaign ID) in Genesys Cloud Org for which you need to configure the integration for. Ex: Queue ID - 8cc2fa36-338b-445b-9f19-ca4224d444fb , Campaign ID - 7C49C841-13B5-4937-91DA-2E90AAC4A376

Pop-Up Configuration Prerequsites

The following parameters of your Dynamics365 are required to complete the integration flow:

• Entity Details Entity Details (Customer Record) in Dynamics 365 to associate a conversation with. Example - When an inbound call or a chat is received, which Entity needs to be Popped on the user screen ? (account, lead, contact or a custom Entity)
    Required Details : Entity Name , Primary Key Attribute, Primary Key

   Ex: Entity Name: contact, Primary Key Attribute: fullname, Primary Key: contactid
• Related Entity Details Details of Related Entity. This is not mandatory and is required if there are multiple records associated with the Entity (Customer Record) and another related Entity is needed to identify the Customer Record in context. Example - A Phone number is associated with multiple Netflix accounts and the customer reaches out for a support query with one of their accounts. (Entity Name: phone, Related Entity: accountid)
  Required Details : Entity Name , Primary Key Attribute, Primary Key, Collection-Valued Navigation Property.
  Ex- Related Entity Name: account, Primary Key Attribute: name, Primary Key: accountid, Collection-Valued Navigation Property: account_primary_contact
• Alternate Entity Details Alternate Pop-Up Options. When a customer record does not exist or does not match with the one queried, users are required to work on an alternate Entity Pop-up. This is not mandatory and is required if such a scenario needs to be addressed.
  Required Details :  Required Details : Related Entity Primary/Secondary, Entity Name , Entity Property name, Display name.
  Ex- Related Entity Name: contact, Entity name : incident, Entity Property name: customerid, Display Name: New Case

CTI Configuration Prerequisites

The following parameters of your Genesys Cloud Org and Dynamics 365 are required to complete the integration flow:

• Genesys Cloud Call Search Parameter Call Search Parameter is the unique ID associated with a call conversation in Genesys Cloud that could be used to identify the customer record in Dynamics 365. For Queues, the Call Search Parameter is Phone , for Campaigns, the Call Search Parameter is Header Name of the leadlist associated to the Phone Number Column.
• Dynamics 365 Call Search Parameter Dynamics 365 Call Search Parameter is the property name in Dynamics 365 entity with corresponding value equal to Genesys Cloud Call Search Parameter.
  Required Details : property name
  Ex- For a Queue, the Genesys Cloud Call Search Parameter is phone(Caller Phone number) and the Dynamics 365 Call Search Parameter is telephone1 which is a property name in the Entity: contact.
• Genesys Cloud Chat Search Parameter Chat Search Parameter is the unique ID associated to a chat conversation in Genesys Cloud that could be used to identify the customer record in Dynamics 365. This could be any of the fields used to identify the customer before initiating the conversation like : Email ID, Order No that are received through the widget before initiating the Chat.
   Ex: context.email is the parameter that stores the Email ID as the uniqie identifier in Genesys Cloud.
• Dynamics 365 Call Search Parameter Dynamics 365 Chat Search Parameter is the property name in Dynamics 365 entity with corresponding value equal to Genesys Cloud Chat Search Parameter.
  Required Details : property name
  Ex- emailaddress1 is the property name in the Entity contact that corresponds to context.email value in Genesys Cloud.

Activity & Auto Updation

The following parameters of your Dynamics 365 are required to complete the integration flow:

• Activity Entity Name for Call The name of the Activity Entity in Dynamics 365 in which data from Genesys Cloud related to the call conversation such as Call Duration, Phone Number, Conversation ID, Disposition, Call Direction and Call notes need to be auto updated.
  Required Details : Activity Entity Name
  Ex- phonecall is an Activity Entity name in Dynamics365.
• Activity Entity Name for Chat The name of the Activity Entity in Dynamics 365 in which data from Genesys Cloud related to the chat conversation such as Conversation ID, Disposition, and notes need to be auto updated.
  Required Details : Activity Entity Name
  Ex- webchat is an Activity Entity name in Dynamics365.

Auto Updation

The following parameters of your Genesys Cloud Org are required to complete the integration flow:

• Activity Entity Property name The property name in Activity Entity into which data from Genesys Cloud need to be auto updated.
  Required Details : property name

  Ex- description is the property name in the Activity Entity webchat into which the data from notes in Genesys Cloud is to be auto updated.

  Ex- duration is the property name in the Activity Entity phonecall into which the data from callduration in Genesys Cloud is to be auto updated.

User Input Form & Auto Updation

A Custom User Input field allows users to input data while on a conversation. The collected data can be auto updated into Dynamics 365 customer records.

• Data Label The identifier for the data to be input by the user.
  Ex- Does the Customer Own a House ?
• Data Type The data type of the user input can be of type : Boolean, String, Integrer, Option Select or Lookup.
  Ex- Does the Customer Own a House ?
• Activity Entity Property Name The property name in Activity Entity into which data from the user input need to be auto updated.The
  Ex- Lable Name:  Does the Customer Own a House ?, Datatype : Boolean with Options: Yes and No ; ownshouse is the property name in the Entity phonecall.

The following Section provides a detailed step by step guide to setup your integration for Genesys Cloud & Microsoft Dynamics 365.

Activation

Login as administrator in your Genesys Cloud account and under the integrations section search for appxconnect for Dynamics 365 and click Install.

Once your request is approved, you will recieve an Email from appxconnect with the login details for appxconnect account and the ID. The integration will also be available under appstab in Genesys Cloud admin login.

Choose the App(from Appstab) and proceed with the setup wizard.

Dynamics 365 Domain Address.

Enter your Dynamics 365 domain address in the CRM Domain Address details and choose a CIF version for your Setup.

Configuring Integration flow

For every Campiagn and Workgroup, you can set a seperate integration flow with seperate set of rules such as - Specific CTI Pop, Specific set of Entities for search in Dynamics, Specific rules for Activity creation and Custom User fields for auto updation.

Click Add to create a integration flow.

Select the group type to choose Queue / Campaign and enter the respective ID to start building the integration flow.

Follow the setup guide and fill in the details to complete your integration.
